Thyroid Phantom

Yezitronix' Ultrasound Thyroid Phantom Model S-TD-2.3 is a multiple usage phantom developed for training and simulation of medical procedures such as ultrasound guided surgery, needle biopsy and ultrasound scanning. Its ingenious and versatile design makes our thyroid phantom an incredibly useful tool for training of medical procedures.

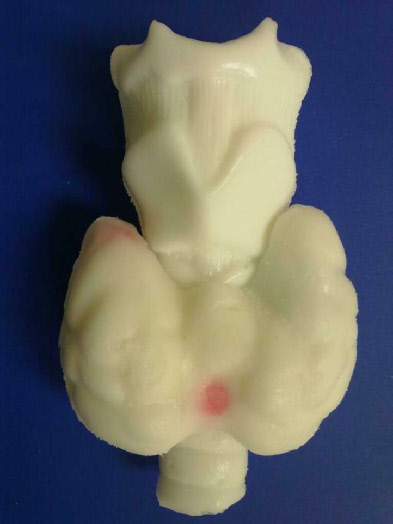

The thyroid phantom construct mimics the exact 3D shape of real sick person's thyroid.

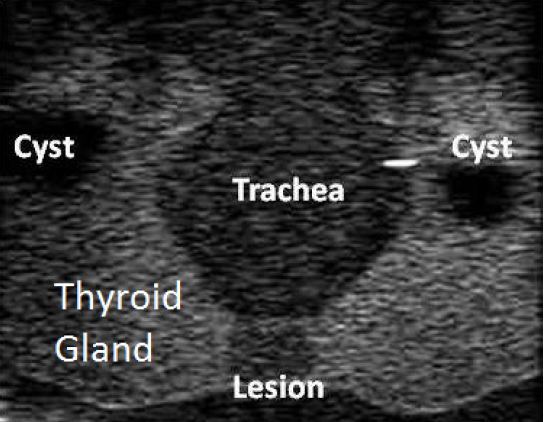

All organs & tissues are correctly adjusted to mimic exact ultrasound echogenicity

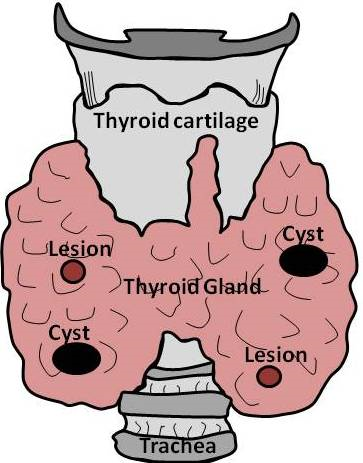

Schematic of the thyroid phantom lesions and cysts.

Brachytherapy template included with the model.

Specifications :
Multi-layer material - each tissue or organ is independent and has its own characteristics, echogenicity and mechanical properties.
Multiple usage of the same packaged phantom during an extended period of time.

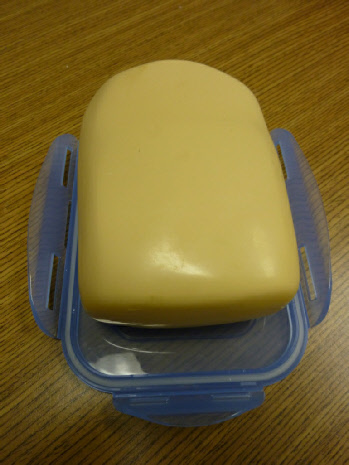

Enclosure dimensions:
L= 20.5 cm; W= 14 cm; H= 9.3 cm.

Components :

Thyroid Cartilage.

Thyroid Gland (enlarged from disease).

Trachea.

2 cysts.

2 lesions.

Download PDF: Thyroid Phantom PDF

Technology developed with the collaboration of the scientists from NRCC-National Research Council of Canada and surgeons at the department of urology at the London Health Sciences Centre in Ontario, Canada.
Patent Pending.

Thyroid Phantom

Thyroid Phantom & Surrounding Tissues Mimicking Device for Ultrasound Applications
